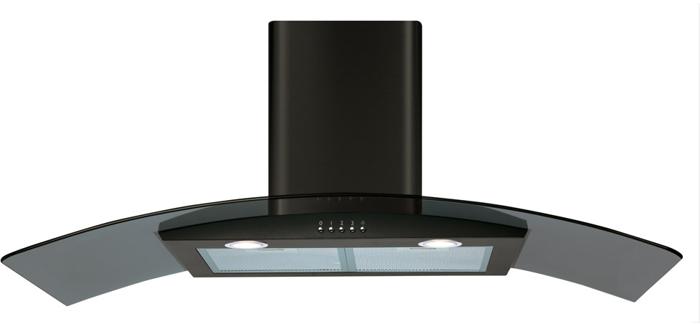

CDA ECP102BL  Curved glass extractor Hood Black
Click to enlarge photograph
CDA ECP102BL  Curved glass extractor Hood Black CDA ECP102BL  Curved glass extractor Hood Black
Click thumbnail to select

Key Features:

  • 3 x Speed Settings
  • Extraction - Ducted and Recirculation
  • Max. Extraction 377m3/h
  • Max. Noise level 54dB (A)
  • LED Lights
Height: 630-1020 mm
Width: 1000 mm
Depth: 500 mm
D
Guarantee - 5 years parts and 2 labour
Only one left in stock

Sorry this product is out of stock, please call 0151 263 8966 for latest price and availability

The CDA ECP102BL has a striking curved glass black design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.

Fitting Notes

Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Technical Specification

  • Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
  • Outlet diameter: 120mm/150mm mm
  • Protection class: Class I
  • Mains lead rating: H05VV-F m
  • Mains lead length: 1 m
  • Power supply: 3 A
  • Required height over electric hobs: 600 mm (min)
  • Required height over gas hobs: 700 mm (min)

Extraction Rates And Noise

  • Extraction rate at first speed: 224 m³/hr
  • Noise level at first speed: 51 dBA
  • Noise level at third speed: 60 dBA
  • Extraction rate at second speed: 315 m³/hr
  • Extraction rate: 377 m3/hr
  • Extraction rate at third speed: 377 m³/hr
  • Noise level at second speed: 58 dBA
  • Noise level: 60 dBA

Filters

  • Charcoal filters: CHA12 (pack of 1)
  • Ducting kit: AED610/660 or AED510/560 with adaptor
  • Number of charcoal filters (optional): 1
  • Number of grease filters: 2
  • Number of layers: 4

Optional Accessories

  • Ducting kit code: 150mm, AED 61/63/64
  • Ducting kit code: 120mm, AED 51/53/54

Misc Information

  • WEEE Category: 01

Guarantee / warranty maybe subject to registration with the manufacturer
