Sorry this product is out of stock, please call 0151 263 8966 for latest price and availability

TYPE

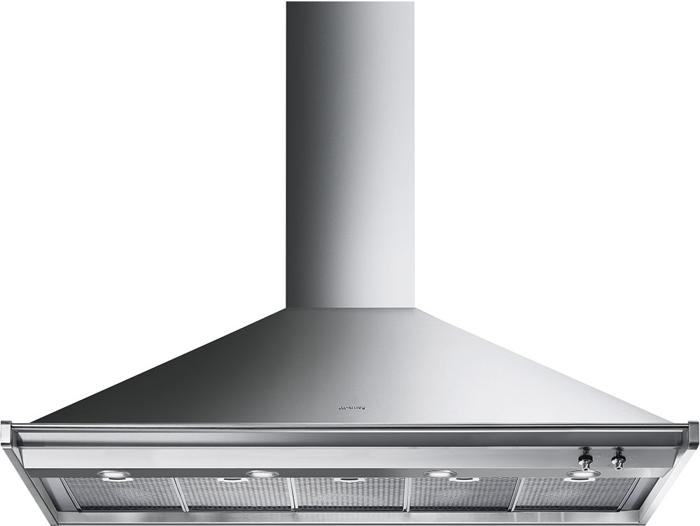

• Product family: Hood
• Hood Type: Decorative wall hood
• Hood width: 150 cm
• Extraction: Extraction
• EAN code: 8017709221720
• AESTHETICS
• Colour: Stainless steel
• Finishing: Satin
• Aesthetics: Classica
• Design: Chimney
• Material: Stainless steel
• Type of steel: Brushed

PROGRAMS / FUNCTIONS

• No. of speeds: 3
• Intensive speed: Yes
• CONTROLS
• Control setting: Control knobs
• Control knobs: Classic
• No. of controls: 2
• Controls colour: Steel effect

TECHNICAL FEATURES

• No. of lights: 4
• Light type: LED
• Light Power: 4 W
• Light color temperature scale (°K): 4000 °K
• Free outlet maximum capacity: 820 m³/h
• Motor power: 275 W
• No. of filters: 5
• Anti-grease filters: Stainless steel
• Minimum distance from GAS hob: 750 mm
• Vent outlet: 150 mm
• Minimum distance from ELECTRIC hob: 650 mm
• Non return valve: Yes

PERFORMANCE / ENERGY LABEL

• Energy efficicency class ( EEC): A
• Fluid Dynamic Efficiency class (FDEC): A
• Grease Filtering Efficiency Class (GFEC): C
• Lighting Efficiency Class (LEC): A
• Annual Efficiency Consumption (AEChood): 55 kWh/a
• Fluid Dynamic Efficiency (FDE): 33.7
• Lighting Efficiency (LE): 62 lux/W
• Grease Filtering Efficiency (GFE): 84.7 %
• Air flow at minumum speed (Qmin): 197 m³/h
• Air flow at maximum speed (Qmax): 508 m³/h
• Air flow at boost speed (Qboost): 804 m³/h
• Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 41 dB(A)
• Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 60 dB(A)
• Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 70 dB(A)
• Power consumption in stand-by mode (Ps): 1.00 W
• Time increase factor (F): 1.00
• Measured air flow rate at best efficiency point (Qbep): 482 m³/h
• Measured air pressure at best efficiency point (Pbep): 448 Pa
• Measured electric power input at best efficiency point (Wbep): 178 W
• Nominal Power consumption of the light system (WL): 4 W
• Average illumination of the light on the cooking surface (Emiddle): 273 lux
• Sound power level at highest setting (Lwa): 60 dB(A)

ELECTRICAL CONNECTION

• Electrical connection rating: 284 W
• Voltage: 220-240 V
• Frequency (Hz): 50-60 Hz
• Power supply cable length: 1000 mm

SPEED 1

• Extraction rate IEC 61591: 197 m³/h
• Noise level IEC 60704-2-13: 41 dB(A)
• Power: 199 W

SPEED 2

• Extraction rate IEC 61591: 439 m³/h
• Noise level IEC 60704-2-13: 57 dB(A)
• Power: 231 W

SPEED 3

• Extraction rate IEC 61591: 508 m³/h
• Noise level IEC 60704-2-13: 60 dB(A)
• Power: 260 W

INTENSIVE SPEED

• Extraction rate (IEC 61591): 804 m³/h
• Noise level IEC 60704-2-13: 70 dB(A)
• Power: 280 W

LOGISTIC INFORMATION

• Dimensions of the product (mm): 800x1500x539
• Width: 1500 mm
• Depth (mm): 539 mm
• Product Height (mm): 800 mm
• Net weight (kg): 26.100 kg
