Home > Hoods > Hood CDA ECP82BL Curved glass extractor Hood Black

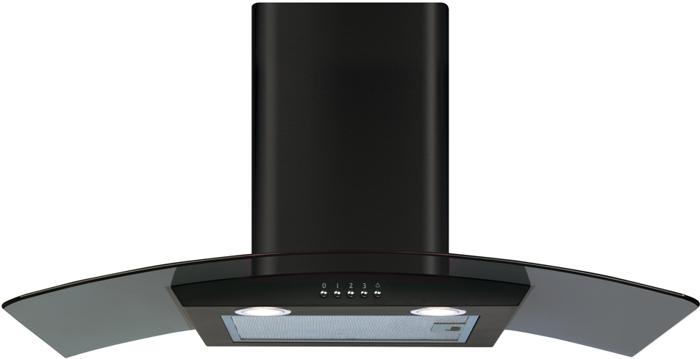

CDA ECP82BL Curved glass extractor Hood Black
Click to enlarge photograph
CDA ECP82BL Curved glass extractor Hood Black CDA ECP82BL Curved glass extractor Hood Black
Click thumbnail to select

Key Features:

  • 3 x Speeds
  • Ducted/re-circulating installation
  • Required height over electric hobs: 600 mm (min)
  • Required height over gas hobs: 700 mm (min)
  • Maximum Extraction Rate 391 m3/hr
  • Maximum Noise 60 dBA
  • 3A Power Supply Required
Height: 630 - 1020 mm
Width: 800 mm
Depth: 500 mm
D
Guarantee - 5 years parts and 2 labour

Sorry this product is out of stock, please call 0151 263 8966 for latest price and availability

The CDA ECP82BL has a striking curved black glass design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.

Fitting Notes

Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Technical Specification

*Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
* Outlet diameter: 120mm/150mm mm
* Protection class: Class I
* Mains lead rating: H05VV-F m
* Mains lead length: 1 m
* Power supply: 3 A
* Required height over electric hobs: 600 mm (min)
* Required height over gas hobs: 700 mm (min)

Extraction Rates And Noise

  • Extraction rate at first speed: 218 m³/hr
  • Noise level at first speed: 50 dBA
  • Extraction rate at second speed: 302 m³/hr
  • Extraction rate: 391 m3/hr
  • Noise level at third speed: 60 dBA
  • Noise level at second speed: 58 dBA
  • Extraction rate at third speed: 391 m³/hr
  • Noise level: 60 dBA

Filters

  • Charcoal filters: CHA12 (pack of 1)
  • Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
  • Number of charcoal filters (optional): 1
  • Number of grease filters: 1
  • Number of layers: 4

Optional Accessories

  • Ducting kit code: 150mm, AED 610/660
  • Ducting kit code: 120mm, AED 510/560

Misc Information

  • WEEE Category: 01

Guarantee / warranty maybe subject to registration with the manufacturer
