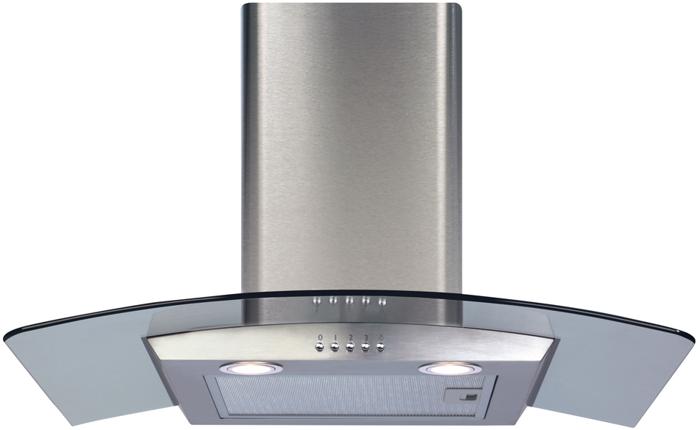

CDA ECP72SS Curved glass Hood Stainless steel
Click to enlarge photograph
CDA ECP72SS Curved glass Hood Stainless steel CDA ECP72SS Curved glass Hood Stainless steel
Click thumbnail to select

Key Features:

  • Ducted/re-circulating installation
  • 3 x Speeds
  • 2x 2W LED lights
  • Push button control
  • Outlet Diameter (mm) 150 with a 120 reducer
  • Required height over gas hobs (mm) 700
  • Required height over electric hobs (mm) 600
Height: 630-1020 mm
Width: 700 mm
Depth: 500 mm
D
Only one left in stock

Alternative Colours

Sorry this product is out of stock, please call 0151 263 8966 for latest price and availability

The CDA ECP72SS has a striking curved glass stainless steel design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.

  • Required height over gas hobs: 700 mm (min)
  • Required height over electric hobs: 600 mm (min)
  • Power supply: 3 A
  • Mains lead length: 1 m
  • Mains lead rating: H05VV-F m
  • Protection class: Class I
  • Outlet diameter: 120mm/150mm mm
  • Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
  • Outlet diameter: 150mm with a 120mm reducer mm
  • Rated electrical power: 104 W
  • Motor Input: 100.0000 W
  • Rated electrical power: 104 W

  • Ducting kit code: 120mm, AED 51/53/54

  • Ducting kit code: 150mm, AED 61/63/64
  • Charcoal filter for re-circulation: CHA12 (pack of 1)
  • Charcoal filter for recirculation : 0

  • Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearnace between the hob and extractor

  • Charcoal filters: CHA12 (pack of 1)

  • Number of layers: 4
  • Number of grease filters: 1
  • Number of charcoal filters (optional): 1
  • Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
  • Charcoal filter code: CHA12 (pack of 1)

  • Extraction rate at first speed: 218 m3/hr

  • Noise level at first speed: 50 dBA
  • Extraction rate at second speed: 302 m3/hr
  • Noise level at second speed: 58 dBA
  • Extraction rate: 391 m3/hr
  • Noise level: 60 dBA
  • Extraction rate at third speed: 391 m3/hr
  • Noise level at third speed: 60 dBA

  • Type of light: LED

  • Number of lights: 2
  • Additional lighting: 0

Guarantee / warranty maybe subject to registration with the manufacturer
