Home > Hoods > Hood CDA ECP92SS Curved Glass 90cm Hood Stainless steel

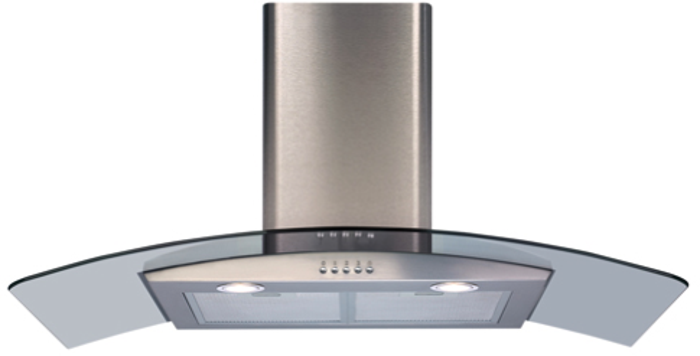

CDA ECP92SS Curved Glass 90cm Hood Stainless steel
Click to enlarge photograph
CDA ECP92SS Curved Glass 90cm Hood Stainless steel CDA ECP92SS Curved Glass 90cm Hood Stainless steel
Click thumbnail to select

Key Features:

  • 3 x Speed Settings - Max 391 m³/hr Extraction Rate
  • Ducted/re-circulating installation
  • Aluminium Grease Filters
  • Lighting: 2 x 2W LED lights
  • Push Button Control
  • Power supply: 3 A
  • Required height over gas hobs: 700 mm (min)
  • Required height over electric hobs: 600 mm (min)
Height: 430-800 mm
Width: 900 mm
Depth: 500 mm
D
Guarantee - 5 years parts and 2 labour

Sorry this product is out of stock, please call 0151 263 8966 for latest price and availability

The CDA ECP92SS has a striking curved glass stainless steel design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.

Technical Specification

  • Required height over gas hobs: 700 mm (min)
  • Required height over electric hobs: 600 mm (min)
  • Power supply: 3 A
  • Mains lead length: 1 m
  • Mains lead rating: H05VV-F m
  • Protection class: Class I
  • Outlet diameter: 120mm/150mm mm
  • Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
  • Outlet diameter: 150mm with a 120mm reducer mm
  • Motor Input: 100.0000 W
  • Rated electrical power: 104 W

Optional Accessories

  • Ducting kit code: 120mm, AED 51/53/54
  • Ducting kit code: 150mm, AED 61/63/64
  • Charcoal filter for re-circulation: CHA12 (pack of 1)
  • Charcoal filter for recirculation : 0

Fitting Notes

  • Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Filters

  • Number of layers: 4
  • Number of grease filters: 1
  • Number of charcoal filters (optional): 1
  • Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
  • Charcoal filter code: CHA12

Extraction Rates And Noise

  • Extraction rate at first speed: 224 m3/hr
  • Noise level at first speed: 51 dBA
  • Extraction rate at second speed: 315 m3/hr
  • Noise level at second speed: 58 dBA
  • Extraction rate: 377 m3/hr
  • Noise level: 60 dBA
  • Extraction rate at third speed: 377 m3/hr
  • Noise level at third speed: 60 dBA

Lighting

  • Type of light: LED
  • Number of lights: 2
  • Additional lighting: 0

Energy

  • Energy rating: D

Guarantee / warranty maybe subject to registration with the manufacturer

Availability: Out of stock
Please call for price & availability.
